Functions and Features:
■Advanced(MOSFET)inverter techology.
■Compact.portable,highly effective and low consumption.energy saving.
■Anti-stick,thermostatic control.fan cooled,carrying strap and handle.
■Hot start,arc force,overload protection.
■HF(high frequency)arc-starting.
■Applicable for welding of all kinds of ferrous metals such as low carbon steel,medium carbon steel and alloy steel,etc.
Access:

Supplied with earth clamp,face mask and welding brush

Welding Wire Diameter And Thickness：

Model	Suitable Welding Wire	Welding Thickness
ZX7-160T	1.6-3.2mm	2-4.5mm

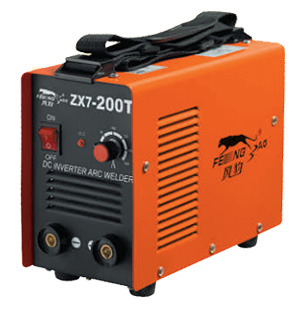

ZX7-200T	1.6-4.0mm	2-4.5mm

Main Technical Parameters

Item	Unit	ZX7-160T	ZX7-200T
Input Power Voltage	V	single-phase 220V±10%
Frequency	Hz	50/60	50/60
Rated Input Current	KVA	5.3	7.1
Output Current Adjusting Range	A	20-160	20-200
No-load Voltage	V	56	56
Rated Duty Cycle	%	60	60
Speed Of Welding Wire	COSФ	0.93	0.93
Protective Grade Of Housing		IP21S	IP21S
Overal Dimension	mm	290x240x135	290x240x135
Weight	kg	6.3	6.9
